Pairing Transmitter

The QuattroPod receiver can be paired with up to 32 transmitters simultaneously. The transmitters are paired by default with the supplied receiver. However, you can purchase additional transmitters or use transmitters with a different receiver. There are two ways to pair a T02+ transmitter with a receiver:

Pair transmitter via QR code

Note

This step must be performed in the same room or within the radio range of the receiver.

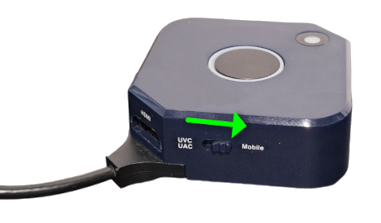

  • Switch the transmitter to Mobile mode:

  • Then connect the transmitter’s USB-A cable and the supplied HDMI cable to your computer:

Open advanced settings

  • To access the web interface, connect your notebook to the QuattroPod, either via the QuattroPod’s SSID or the same Wi-Fi or LAN infrastructure that the QuattroPod is connected to:

  • Enter the IP address of the Cast Go! into the address bar of a web browser, either the Direct Link IP or the Infrastructure IP, depending on which your notebook is connected to. The Cast Go! settings interface will appear:

Display QR code

  • If Extended Desktop is active, first switch to the monitor mode Duplicate. To do this, press the shortcut [Windows key] + [P]:

  • Scroll down to the bottom edge of the page so that the QR code is fully visible:

  • Within 5 seconds, the transmitter detects the QR code and pairs with the receiver. This is confirmed with "Transmitter 192.168.168.xxx is connected" on the start page. The transmitter can now be used for screen transmission:

Pair transmitter via USB stick

If the receiver is out of range and difficult to access, you can download a pairing file and copy it to the transmitter using a USB stick.

  • Format the stick as FAT32.

There are two ways to save the pairing file on the USB stick:

Download pairing file via web interface

  • Download the pairing file pairingInfo.json from the Admin Settings menu of the web interface:

Download pairing file

  • Then copy the file onto a USB stick. You do not need to delete any other files.

IMPORTANT: The pairing file must be saved at the root directory of the USB stick.

Copy pairing file to USB stick

Download pairing file via receiver

  • Connect the USB stick to the USB port of the receiver and press the pairing button on top of the receiver. After a few seconds, the pairing file is copied to the USB stick and the pairing button on the receiver lights up white.

Copy pairing file from receiver to USB stick

Connect USB stick to the transmitter

Note

This step must be performed in the same room or within the radio range of the receiver.

  • To start pairing via USB stick, switch the transmitter to Mobile mode.

Switch transmitter to Mobile

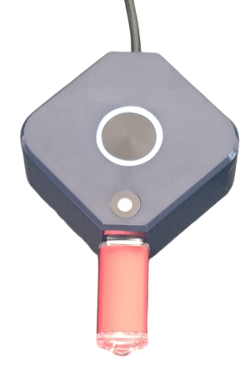

  • Connect the transmitter’s USB cable to a USB power supply (5V1A) and insert the USB stick into the transmitter’s USB port. Pairing starts automatically. The transmitter blinks red, white, and green several times in succession during pairing. After about 30 seconds, the transmitter is paired with the QuattroPod receiver. When pairing is finished, the transmitter lights up white:

Transmitter blinking red

The transmitter can now be used with the receiver. Finally, switch the transmitter to the desired mode and connect the transmitter to the desired end device:

  • Mobile = Smart devices

  • UVC = Windows/macOS
