Pairing transmitters

The QuattroPod receiver can be paired with up to 32 transmitters simultaneously. The transmitters are paired with the supplied receiver by default. However, you can purchase additional transmitters or use transmitters with a different receiver. To do this, the transmitters must be paired with the corresponding receiver.

There are two ways to pair a transmitter with a receiver

The transmitter is connected to the USB port of the receiver and the devices pair automatically. Some find this option easiest if the receiver is within easy reach. If the receiver is mounted on the ceiling or is simply difficult to reach, pair the transmitter via USB stick.

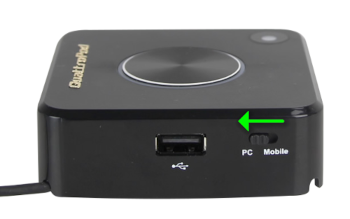

  • Switch the transmitter to PC.

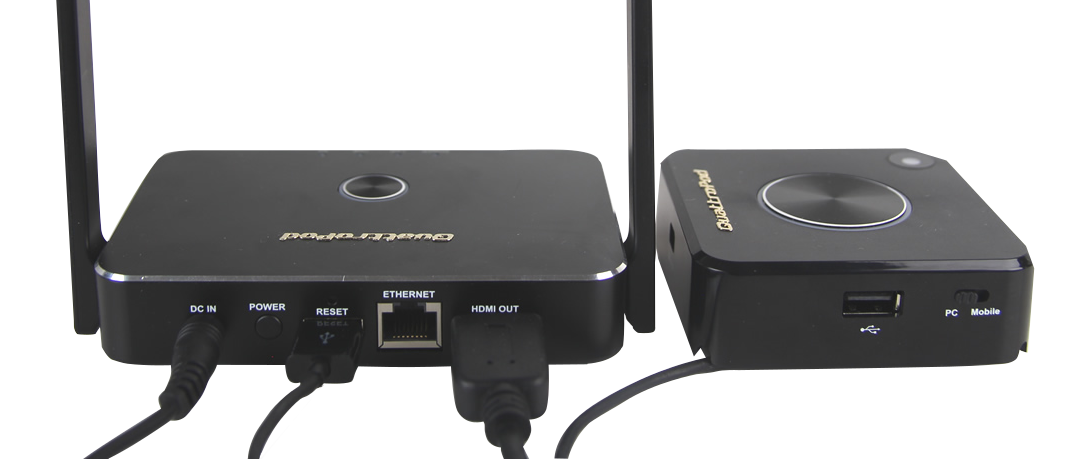

  • Connect the transmitter to the USB port of the receiver and switch on the receiver.

The message "Pairing... " automatically appears on the QuattroPod`s landing page.

During pairing, the transmitter flashes red and the receiver flashes white.

After a few seconds, the transmitter is paired with the QuattroPod. The receiver and the transmitter light up white.

This is confirmed with "Pairing OK " on the landing page.

  • The transmitter can now be used with the corresponding receiver. Finally, switch the transmitter to the desired mode: Mobile = smart devices, PC = Windows/macOS and connect the transmitter with your desired terminal.

Pair transmitter via USB stick

Download pairing file via web interface

With some systems, the receiver is out of range and requires a lot of effort to reach. However, you have the option of downloading a coupling file and copying the receiver`s information to the transmitter via USB stick. You can use FAT, FAT32, or NTFS as the file system of the USB stick.

  • Either download the pairing file pairingInfo.json from the menu item Device Management of the web interface.

and copy the file to a USB stick. You do not need to delete any other files first. IMPORTANT: It is essential to save the pairing file at the root of the USB stick.

Downloading the pairing file via receiver

  • Before mounting the receiver on the ceiling or even when the receiver is easily accessible, you can insert a USB stick into the USB port of the receiver and press the pairing button on the top of the receiver. After a few seconds, the pairing file is copied to the USB stick and the receiver`s pairing button lights up white. You can keep this file in your network or on the USB stick until pairing is needed.

Connect the USB stick to the transmitter

Tip

This step must be carried out in the same room or within radio range of the receiver.

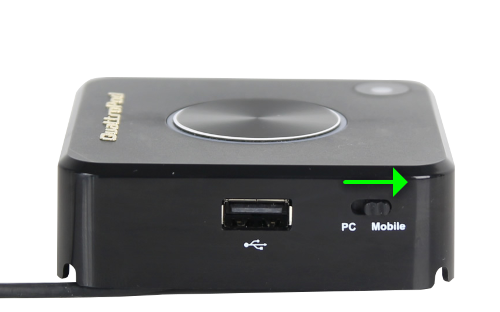

  • To start pairing via USB stick, switch the transmitter to Mobile.

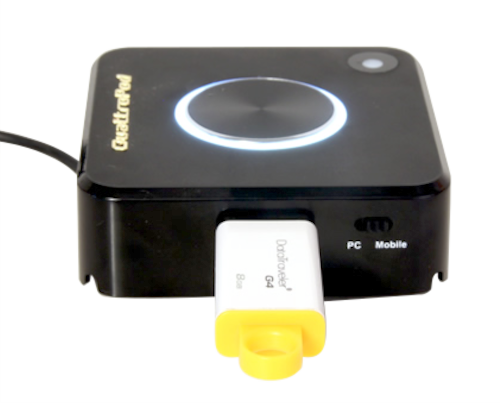

  • Connect the transmitters USB cable with a USB power supply (5V1A) and insert the USB stick into the transmitters USB port. Pairing starts automatically. The transmitter flashes red, white, and green several times in succession during pairing. After about 30 seconds, the transmitter is paired with the QuattroPod receiver. When pairing is complete, the transmitter lights up white.

  • The transmitter can now be used with the corresponding receiver. Finally, switch the transmitter to the desired mode: Mobile = smart devices, PC = Windows/macOS and connect the transmitter with your desired terminal.
