Reset QuattroPod to default settings

There are several reasons for resetting the QuattroPod to factory settings:

  • You have forgotten the admin password for the Advanced settings.

  • You have made changes to your network infrastructure, LAN TCP/IP settings, or the QuattroPod`s SSID credentials and your QuattroPod is no longer accessible.

  • If you having trouble reservsing unwanted changes on the QuattroPod.

A reset resets all settings except the Wi-Fi SSID, the Wallpaper of the landing page, and the firmware version.

Reset via Reset Switch

If you do not know the access data to the Web interface, you have the possibility to reset the default settings with the reset switch:

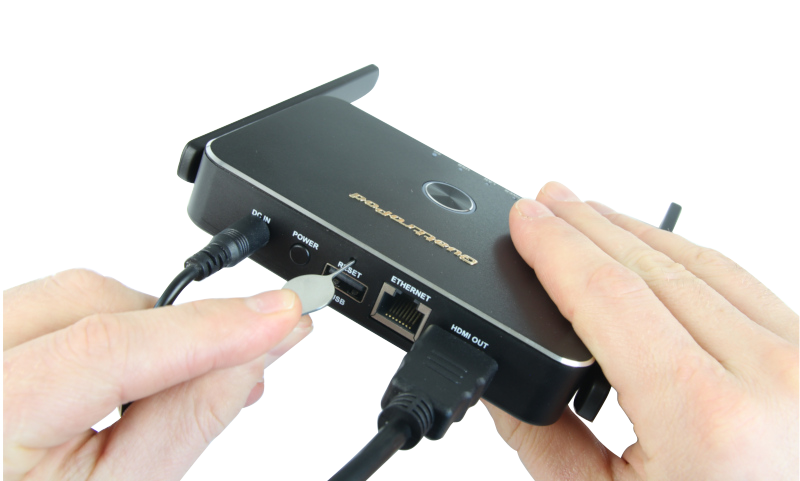

  • Using a small pin, press and hold the reset switch for about 10 seconds.

Reset button is located at the back of the QuattroPod

  • When the following message appears, release the reset switch.

  • After the reset, the country of the Wi-Fi channel must be selected during the first login on the web interface. For devices within Europe, please select EUROPE. Then enter a new admin password.

Reset via Web Interface

Using the Advanced settings function, you can log in and reset to the default settings using any web browser.

Registration

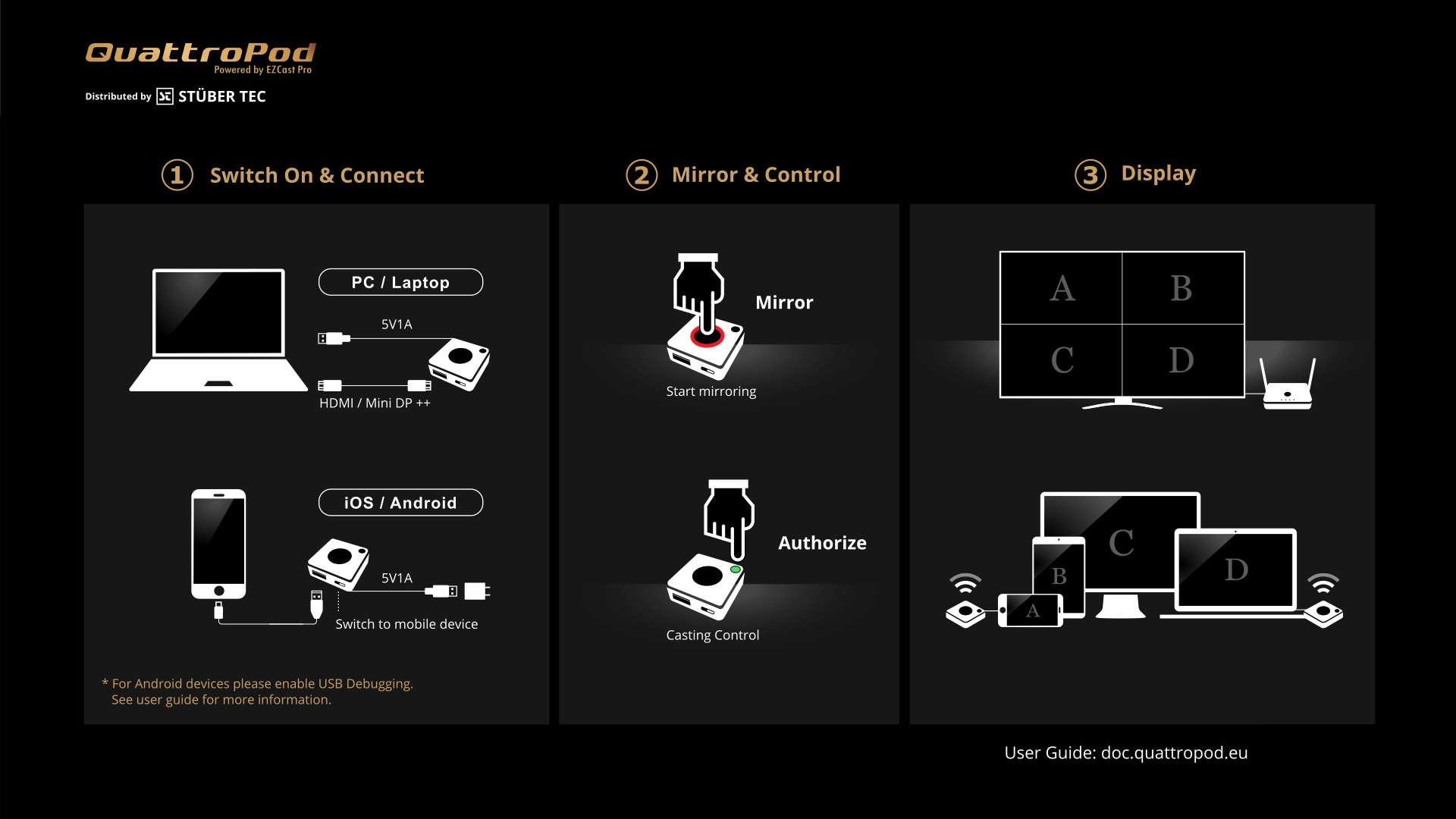

  • Make a note of the IP address displayed at the bottom left of the landing page.

  • Now call up your web browser.

  • Click with the mouse in the address bar of the browser and enter the IP address of the QuattroPod.

  • After pressing the Enter key, the QuattroPods settings interface appears. Enter the password. By default, it is000000`. If this password is not accepted, you must perform a reset-per-reset-switch.

  • The following functions are available. Select the Admin Settings menu item:

  • Execute the function Reset to default settings. The receiver restarts itself:

  • You can choose exactly which devices to reset. This does not affect the home screen wallpaper, SSID, or firmware version. Click OK to reboot the device:

Reset to default settings

  • After resetting the receiver, the country of the Wi-Fi channel must be selected during the first login on the web interface. For devices within Europe, please select EUROPE. Enter a new admin password and then click Apply and Reboot to reboot the device:

Note

If your transmitter does not unlock after reset, check the receiver and pair the transmitter with the receiver again.

Recommended Settings After Reset

We recommend the following settings:

Firmware-Version: 1.12412.47

Device Management

Admin Settings
