Update Firmware¶

Why update the firmware?¶

To benefit from the latest features of Cast Go!, you can quickly and conveniently install the latest firmware update via the internet. When installing a new firmware, the previous settings are retained.

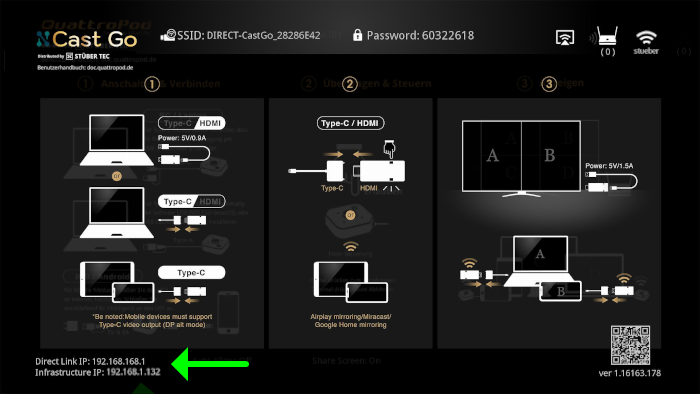

You will need an Internet connection to the internet or via your router. If the Cast Go! is connected to your Wi-Fi, an IP address assigned by your network will be displayed on the screen with the label Infrastructure IP, as shown below:

Connect and power on the transmitter¶

When performing a firmware update, it is important not to overlook the transmitter. Please ensure that the receiver and all transmitters are kept up to date.

Log in to the web interface¶

The update is performed via the web interface in any web browser.

• Note the IP address displayed at the bottom left of the home screen.

• Now open your web browser.

• Click in the address bar of the browser and enter the IP address of the Cast Go!.

• After pressing the Enter key, the settings interface of the Cast Go! should appear. Enter the password. By default, it is 000000. If this password is not accepted, you must reset to factory settings.

• During the first login, you must change the admin password. After that, you will need to log in again.

Start the update¶

• Click on Admin Settings:

• Click on Update:

• To start the update, check Select all, then click on Upgrade.

Install firmware via the Internet with the CMS¶

With the CMS (Central Management System) you can install the latest firmware from the internet on multiple EZCast Pro II or QuattroPod devices.

• If new firmware is available for the receiver or transmitter, the message appears next to the device:

• Select the desired devices, then click the Remote button -> and choose the function Device firmware upgrade.

• Under the OTA tab, simply click the Apply button to perform the update:

The new firmware will be downloaded and automatically installed.

• During the transmitter update, the following message appears:

• During the receiver update, the following message appears:

Install firmware without internet using CMS¶

The CMS (Central Management System) also allows you to install the latest firmware on devices that are not connected to the internet. Please use the links below to download the firmware for your devices in advance:

• Select the desired devices, then click on the Remote button and choose the option Device firmware upgrade.

• Under the FILE tab, select the firmware file you previously downloaded:

• Click the Apply button to perform the update:

• During the transmitter update, the following message appears:

• During the receiver update, the following message appears:
