Reinstall Firmware¶

You can restore the Cast Go! by reinstalling the firmware. There are several reasons to do so:

• The Cast Go! will not turn on. The power supply has already been checked. In this case, it may be due to an interrupted update process.

• The Cast Go! is unstable and a reset did not help.

You have a choice: simply install the latest firmware or a different firmware version.

Install Firmware via USB Cable¶

Requirements¶

• You need a Windows computer to install the firmware onto the Cast Go!.

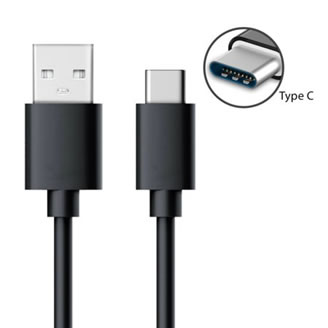

• The firmware upgrade must be performed using the included USB Type-C cable under Microsoft Windows.

Receiver (LR10) - Reinstall Firmware¶

Install LR10 Repair Tool¶

• Download the Cast Go! (LR10) Repair Tool.

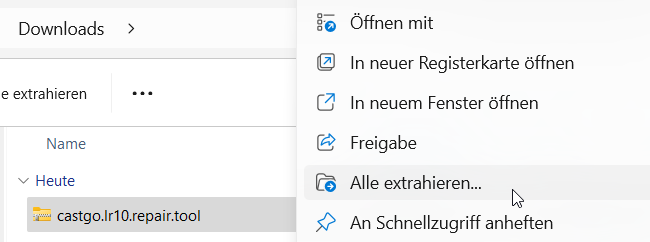

• Extract the file CastGo.LR10.Repair.Tool.zip.

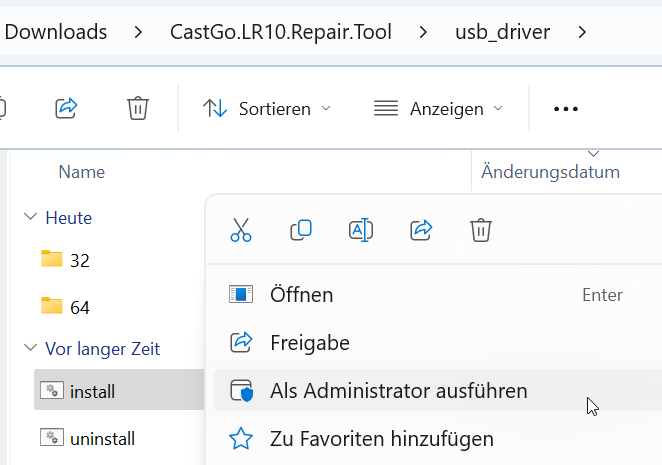

• Install the drivers by running the batch file CastGo.LR10.Repair.Tool\usb_driver\install.bat as administrator.

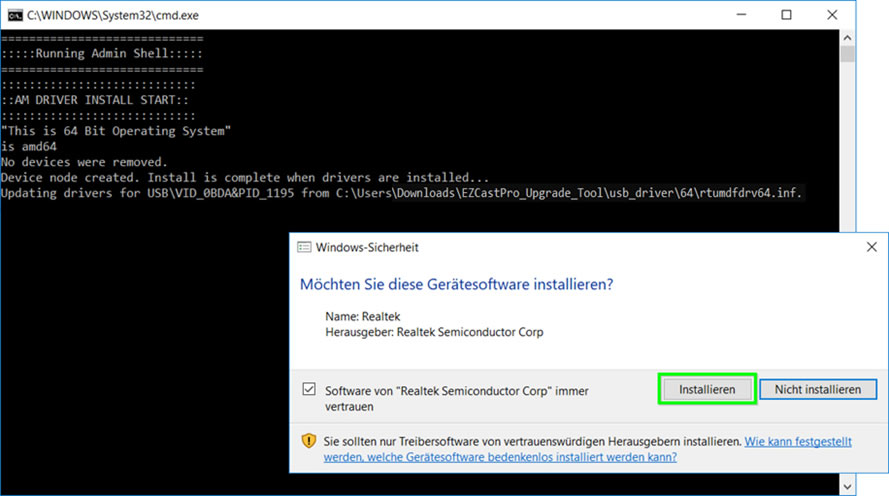

• If the following security message appears, select "Install":

Put Receiver into Update Mode¶

• Connect the included USB Type-C cable to the stick’s USB port. The stick remains turned off.

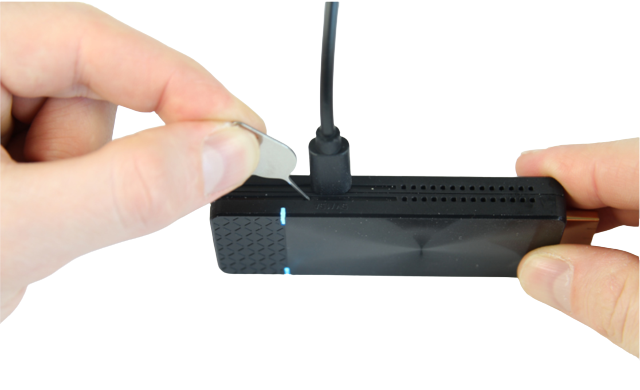

• To put the Cast Go! receiver into update mode, press and hold the reset button. Then connect the USB Type-C cable to your Windows PC. After five seconds, release the reset button.

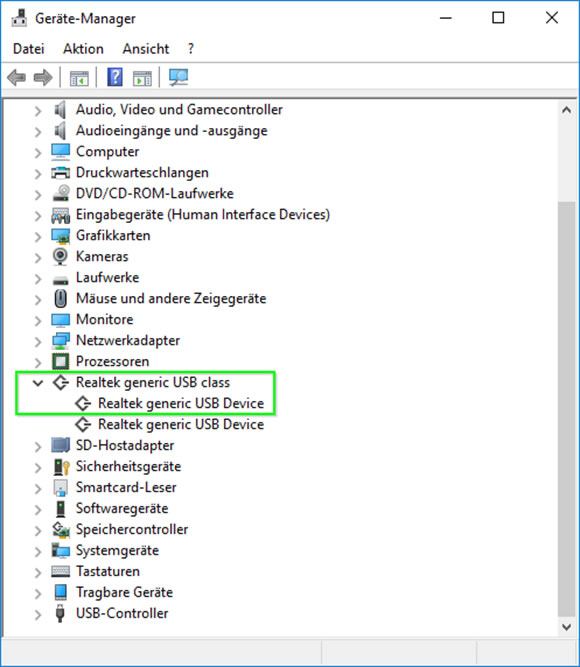

If the driver is correctly installed and Cast Go! is connected, the device should appear as “Realtek generic USB Device” in the Device Manager. If not, check the driver installation, cable setup, and update mode as described in the previous step.

Install Firmware¶

To install a previous or beta firmware, download one of the following files:

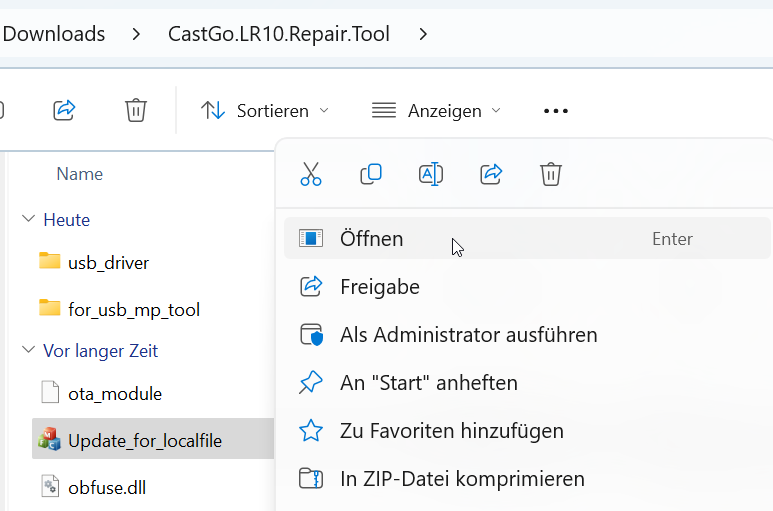

• In the folder CastGo.LR10.Repair.Tool run the file Update_for_localfile.exe.

The following window appears. If the Cast Go! is in update mode, the tool will show “EZCast device connected”.

• Use the Firmware button to select the desired firmware file.

• To start the firmware installation, select Upgrade.

The firmware will be installed.

If installation is successful, the following message appears:

The Cast Go! is ready to use again.

Transmitter (LT10) - Reinstall Firmware¶

Install LT10 Repair Tool¶

• Download the Cast Go! (LT10) Repair Tool.

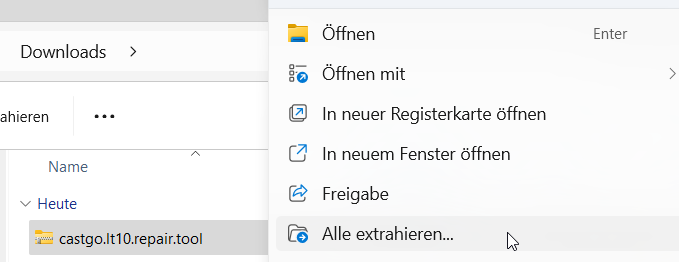

• Extract the file CastGo.LT10.Repair.Tool.zip.

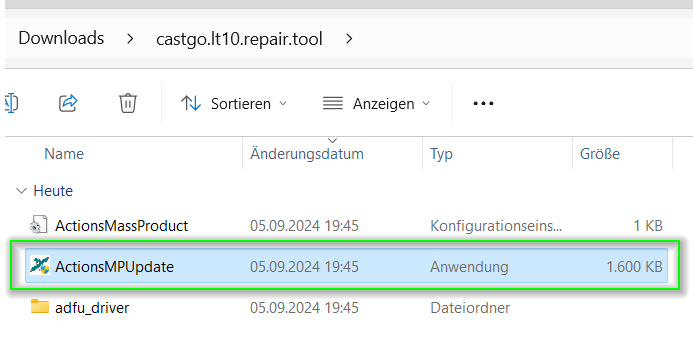

• In the castgo.lt10.repair.tool folder, run the file ActionsMPUpdate.exe to open the software.

• If the following security message appears, first click the More info link.

• Then click the Run anyway button.

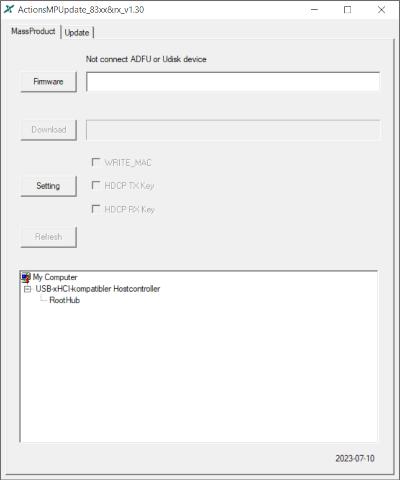

• The following window appears:

Put Transmitter into Update Mode¶

• Connect the included USB Type-C cable to the stick’s USB port. The stick remains turned off.

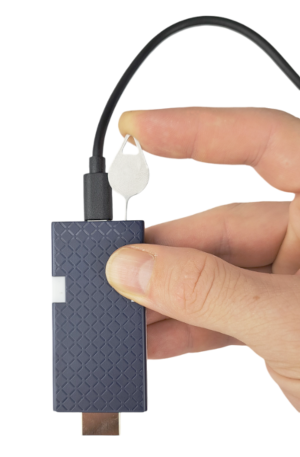

• To put the Cast Go! transmitter into update mode, press and hold the reset button. Then connect the USB Type-C cable to your Windows PC. After five seconds, release the reset button.

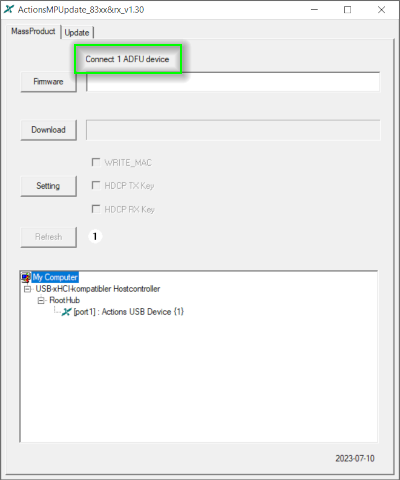

If the Cast Go! transmitter is successfully in update mode, the tool will display the status Connect 1 ADFU device:

Install Firmware¶

To install a previous or beta firmware, download one of the following files:

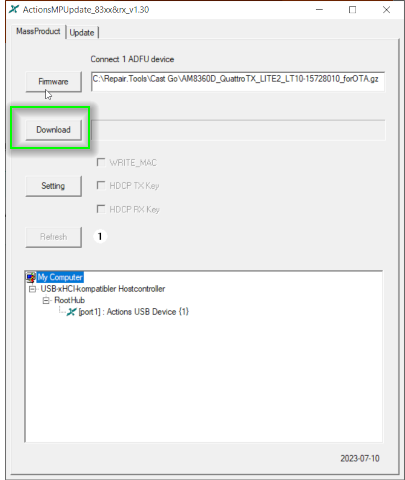

• Use the Firmware button to select the desired firmware file.

• To start the firmware installation, select Download.

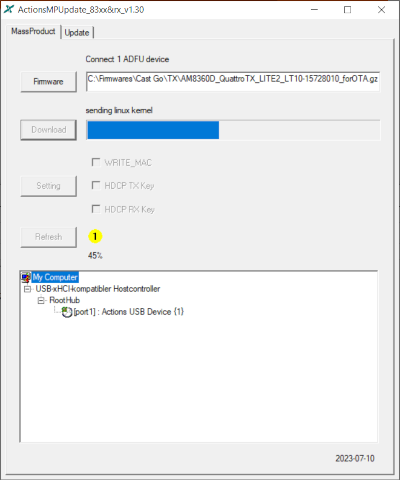

The firmware will be installed.

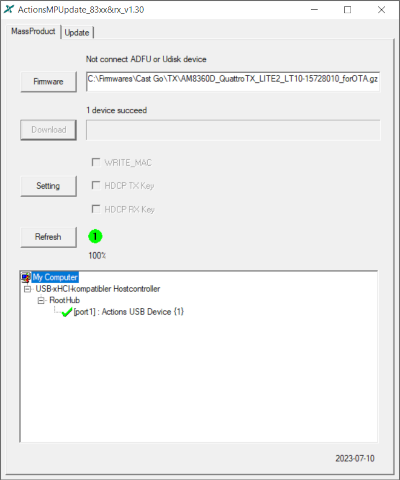

When installation is successful, the status turns green and shows 100%.

You can now disconnect the transmitter from the computer and close the software.

Install Firmware with the CMS¶

With the CMS (Central Management System), you can install not only the latest firmware from the internet on multiple Cast Go! or QuattroPod devices, but also a previous version or a beta firmware.

• Download firmware for the Cast Go!.

• Select the desired devices, then click the Remote button -> and choose the Device Firmware upgrade function.

• Under the FILE tab, click the File button and select the firmware file you downloaded in the first step.

The new firmware will be downloaded and automatically installed.

Settings After Reinstallation¶

Reinstalling the firmware will reset all settings. Our recommended settings can be found here.
