Advanced Settings¶

With the Advanced Settings feature, you can update the firmware and conveniently adjust many settings of the QuattroPod remotely.

Open Advanced Settings¶

• Connect your device to the QuattroPod, either via the QuattroPod's SSID or through the same Wi-Fi/LAN infrastructure the QuattroPod is connected to:

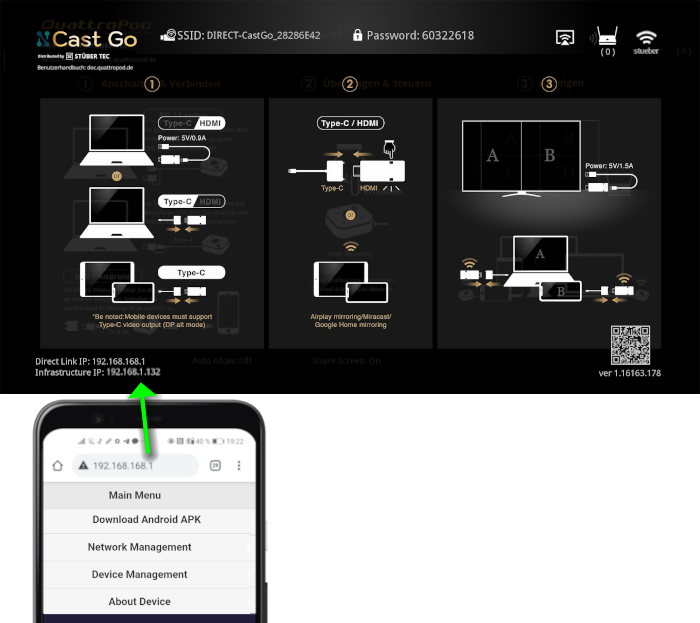

• In the address bar of a web browser, enter the IP address of the QuattroPod, either the Direct Link IP or the Infrastructure IP, depending on which your device is connected to. The QuattroPod settings interface will appear:

Log in as Admin¶

• Enter the admin password and click OK to log in. By default, the password is 000000. If this password is not accepted, reset the device using the reset switch.

The following features are available:

Network Management¶

Connect to 5GHz Wi-Fi Router/AP¶

If you prefer to connect the QuattroPod via a wireless access point to access the Internet, you can find the option here.

More details in our Connect via WLAN/LAN user guide.

Remember Wi-Fi¶

Defines whether the QuattroPod should automatically reconnect to the Wireless Access Point after a reboot.

Device Management¶

This section helps you change the interface Language, the Resolution, or define the Max. Connections. You can also Download the pairing file for receivers and transmitters.

Language¶

In this section, select the desired display language for the web interface.

Resolution¶

Select the output resolution of the QuattroPod here. You can choose a specific resolution or simply select Auto, and the QuattroPod will automatically set the optimal resolution for your screen.

Max. Connections¶

Specify the maximum number of users for the receiver.

Android Audio Streaming¶

Enable Android Sound Streaming through the Android app here.

Display Mode¶

Define whether the display of your device should appear on the external screen or projector in Original or Full Screen mode.

Original¶

In Original mode, the original aspect ratio of the device (e.g., an iPad) is preserved on the external screen or projector:

Full Screen¶

In Full Screen mode, the input from the device is automatically adjusted to match the aspect ratio of the external screen or projector:

Timed Restart¶

To optimize the performance of the QuattroPod, especially for devices in continuous operation, enable the Timed Restart function. The receiver restarts automatically if the following conditions apply:

• The QuattroPod has been inactive for 2/4/8 hours.
• All transmitters have been off for at least 2/4/8 hours.
• Neither AirPlay nor the Android app has been used for 2/4/8 hours.
• The settings web interface has not been accessed for 2/4/8 hours.

Admin Settings¶

In this section, you can update the QuattroPod to the latest firmware, reset to default settings, and configure other advanced settings.

Wi-Fi Channel¶

To avoid interfering Wi-Fi signals, you can adjust the Wi-Fi mode.

SSID / Device Name¶

Here you can rename, hide, or disable the SSID of the receiver.

Password (for Wi-Fi)¶

For security reasons, the password can be changed or hidden.

My Screen¶

Replace the start screen background with up to two custom background images. With two images, they automatically rotate every 10 seconds.

Download our pre-installed background images from the recommended settings.

Dynamic Wallpaper¶

The dynamic wallpaper is a function that starts automatically after a set inactivity period, showing a collection of images or videos on the screen.

A full guide on using dynamic wallpaper is available here.

AirPlay¶

With an iOS/macOS device, you can also share your screen directly via Apple AirPlay. In this case, no QuattroPod transmitter is needed.

Miracast¶

Support screen sharing from Miracast devices. A full guide is available here.

Admin Password¶

Change the receiver's admin password.

Screensaver¶

Turn off the screen or HDMI output of the receiver after a set period of inactivity. This feature is disabled by default.

Inactivity means the start page is displayed, and no transmitters are sending content.

During screensaver mode, the receiver stays active. The web interface remains accessible, and transmitters can still connect.

Wake the receiver or restore the HDMI output by resuming transmission from a sender.

HDCP Pass Through¶

Active HDCP Pass Through.

Google Cast¶

Support casting from ChromeCast devices. Full guide here.

Castcode Control¶

Define whether every guest must enter a four-digit code via the Android app or AirPlay before sharing content.

• OFF - No passcode is required
• Random - Changes regularly
• Fixed - Use a specific cast code

The cast code is displayed here:

A full guide on using the cast code and other security codes can be found here.

Upgrade¶

You can update the firmware of the receiver and transmitters to use the latest features. A full upgrade guide is available here.

Multicast¶

Use this feature to launch the receiver in multicast mode. Full guide here.

Download Pairing File¶

Download the pairing file to link a transmitter with the receiver via USB stick—especially useful if the receiver is ceiling-mounted or hard to reach. More info in Pairing transmitters.

Restart¶

Use this function to restart the receiver.

Reset to Factory Defaults¶

Use this function to reset the receiver and transmitters to factory settings. This does not affect the background image, the SSID, or the firmware version.

If your transmitter doesn’t activate after reset, check the receiver setup and pair the transmitter again.

About the Device¶

Use this option to get an overview of the Cast Go!, all connected transmitters, and related network information.
